MX-O series
The O-series fabric air distribution system incorporates a support structure, which maintains a circular shape even in a non blowing state, making it more aesthetically pleasing and high-end, meeting customers' requirements for natural appearance.
model | O-1 | O-2 | O-3 | O-4 |
Air outlet method | Mesh scattering | Orifice outlet air | Directional nozzle | efflux nozzle |
thickness（mm） | 0.25-0.47 | 0.25-0.47 | 0.25-0.47 | 0.25-0.47 |
weight（g/㎡） | 280-330 | 280-310 | 320-430 | 320-450 |
shrinkage | ±0.2% | ±0.2% | ±0.2% | ±0.2% |
Fire certification | B | B | B | B |
corrosion resistance | have | have | have | have |
Anti condensation property | have | have | have | have |
shape | 5 shapes to choose from | 5 shapes to choose from | 5 shapes to choose from | 5 shapes to choose from |
colour | Color card optional | Color card optional | Color card optional | Color card optional |
Performance of O-series textile materials:
1. Flame retardancy: B1 level (s1, d0, t0) fire-resistant, permanently flame-retardant, non melting and non dripping, with smoke toxicity reaching ZA1 level;
2. Breathability: Permeable material; Featuring 30 standard air permeability rates (1-40mm/s; 125Pa) to meet the needs of different locations
3. Water resistant: can be thoroughly cleaned more than 50 times without any flocculent fabric precipitates
4. Antibacterial and antifungal treatment: After antibacterial and antifungal treatment, ≥ 95%
5. Anti condensation: patented design, fabric air guide, minimal loss of cold and hot loads, no condensation.
6. Conventional weight: 280gsm-450gsm
7. Execution standards: EN ISO 11611、EN ISO 11612、IEC61482-1-2、GB/T5453-1997、GB8624-2012。
8. Application: Low pressure refrigeration, air conditioning and ventilation systems, and heating systems

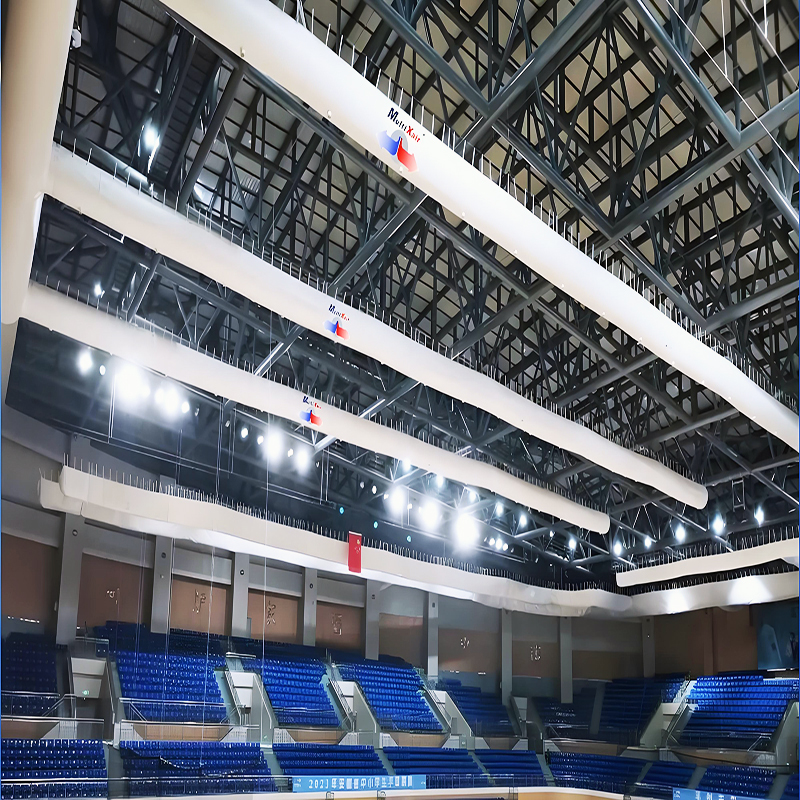

9. Public areas: sports venues, exhibitions, auditoriums, etc
10. Business areas: supermarkets, commercial centers, theaters, gyms
11. Industrial field: ordinary machinery factory, textile workshop, pharmaceutical cool storage, elevated storage
