Project name: Zhuhai Latin America Cold Storage Project

Project address: Zhuhai Latin America Comprehensive Bonded Logistics Hub, Gaolan Port Bonded Zone, Zhuhai City, Guangdong Province

Project Overview: The planned area of the logistics hub project is 219 mu (about 146,000 square meters). Among them, the first phase of the project under construction covers an area of 87 mu (about 60,000 square meters), with a total investment of 450 million yuan, including 2 high-standard frozen warehouses, etc., with an annual cargo turnover of 160,000 tons.

The logistics hub project is guided by economic and trade cooperation and cultural exchanges, and strives to become the main window, main platform, and main base for cooperation and innovation between the primary industry in Brazil and Latin America and the secondary and tertiary industries in China. The building area is 239,188 square meters, including a comprehensive building with three-dimensional cold storage, warehouses, ordinary cold storage, processing areas and roads. Frozen storage, processing and distribution of imported frozen meat, seafood, fruit and nut products; processing capacity of 10,000 tons of fresh products; storage capacity of 25,000 tons; storage capacity of 100,000 tons. It consists of high-rise shelves, aisle stackers, in-and-out conveyors and other equipment. Adopt automated high-bay warehouse information system to improve efficiency.

Fabric ventilation solution:

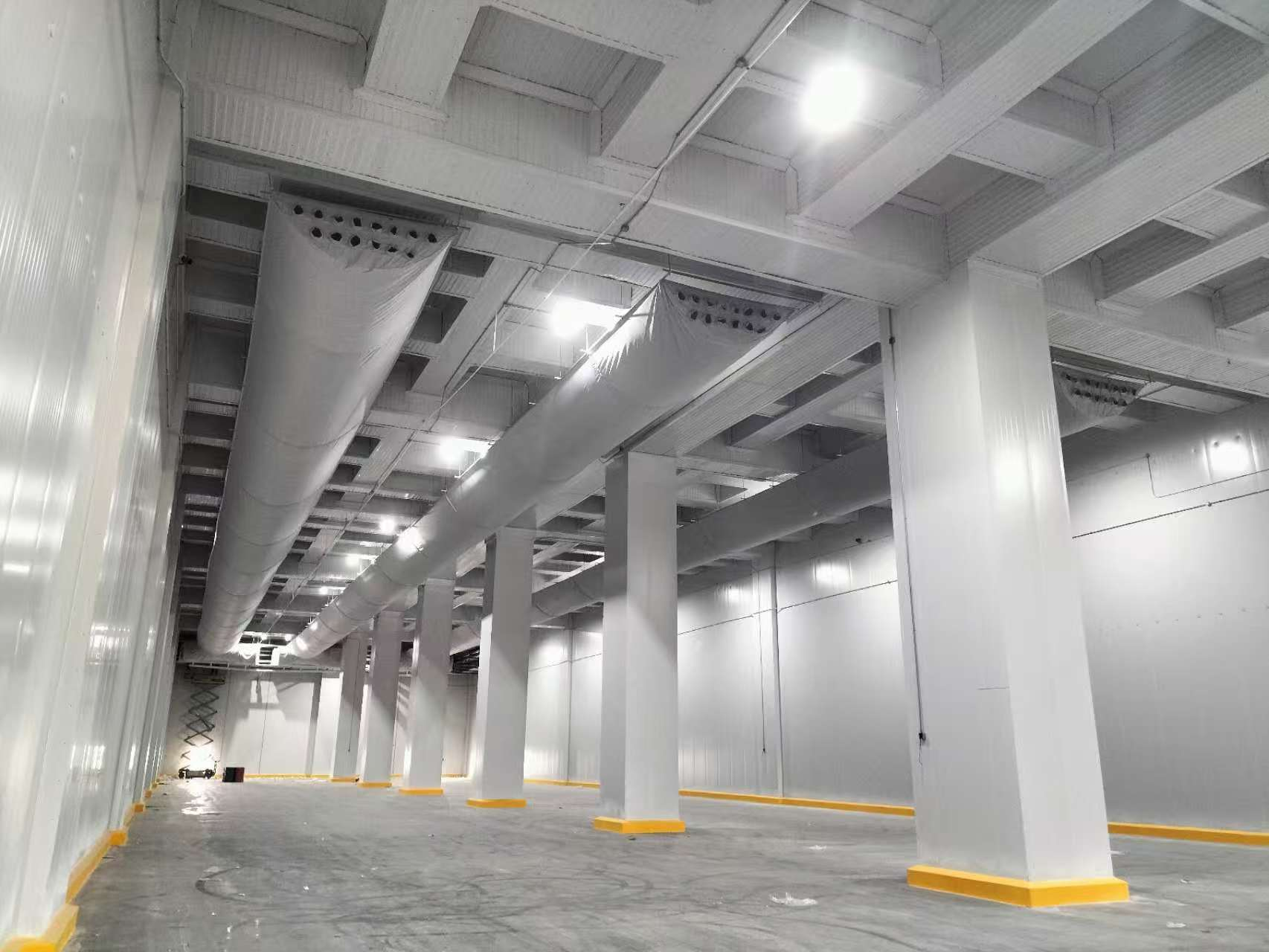

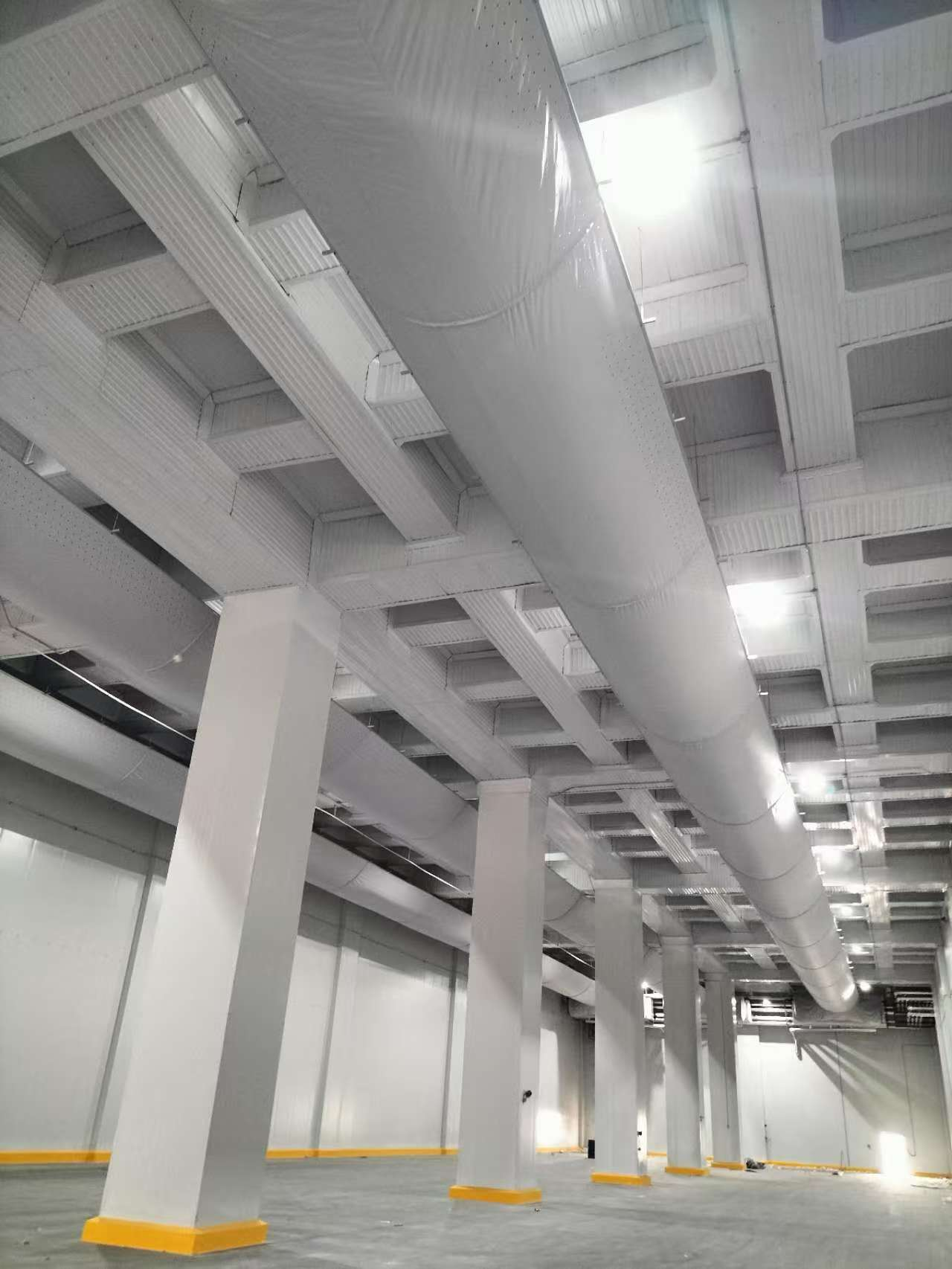

The customized solution we provide to customers is the MX fabric duct system, which is highly permeable and environmentally friendly fabric, durable, and provides a 15-year service life guarantee. It has a directional airflow and a row of holes that will not feel like blowing, as well as a double-row track suspension method that is quick and easy to install.

1. The fabric duct system uses highly permeable and environmentally friendly fabric, which is durable and provides a 15-year service life guarantee.

2. The fabric static pressure box is used. The air cooler is composed of multiple fans in parallel. When supplying air, there is a phenomenon of air flow impacting and disturbing each other. In order to reduce the impact and stabilize the system wind pressure, a fabric static pressure box is designed for the connection part with the air cooler. The wind speed in the static pressure box is lower than the wind speed of the air duct, and part of the dynamic pressure is converted into static pressure, making the system air supply more stable and balanced.

Product series: MultiXair-S

Fabric duct shape: D-Shape2800*850mm
